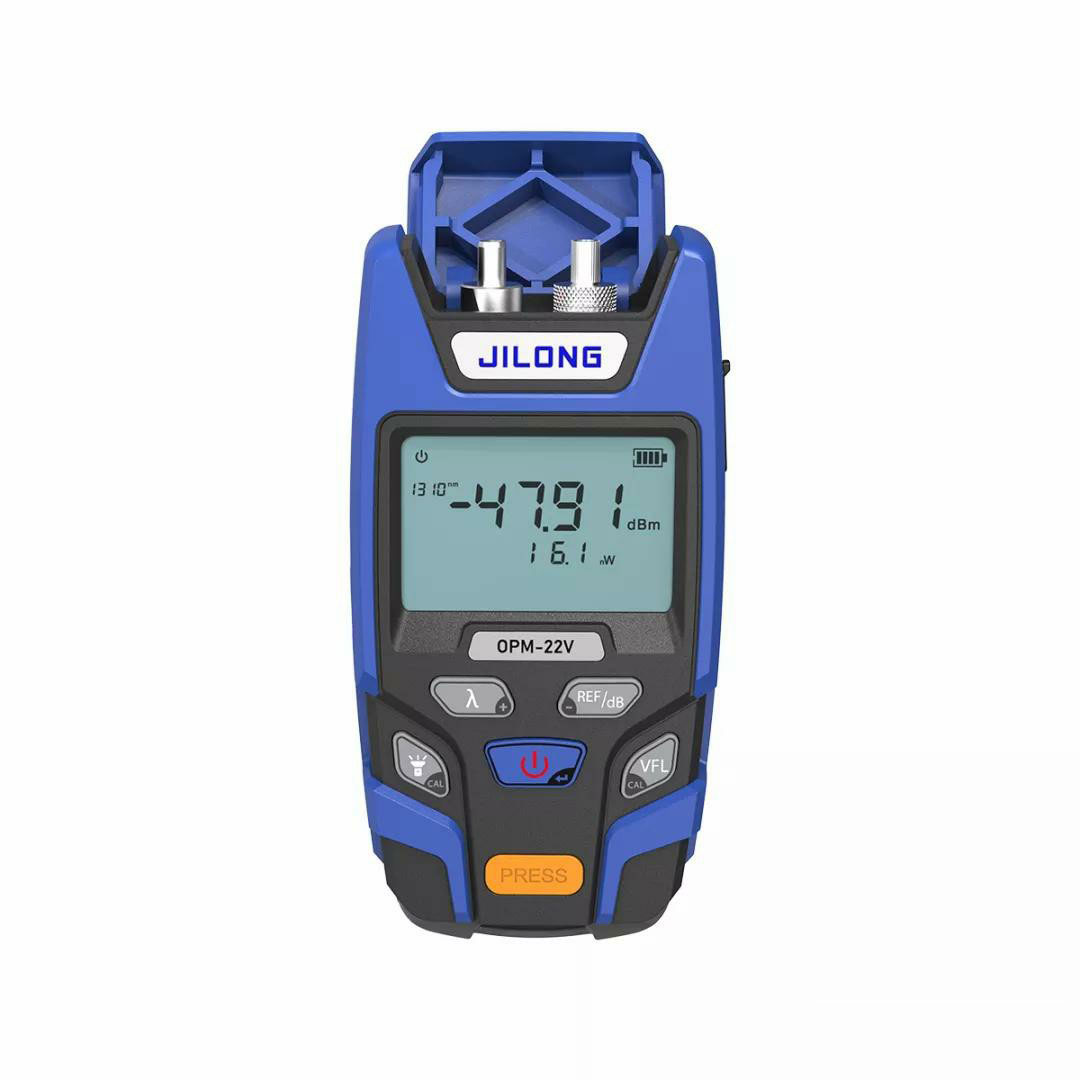

In order to meet the era of 5G communication and meet the needs of new and old customers for more products, we strive to provide global users with optical communication solutions. The new opM-22 mini optical power meter and OPM-22V all-in-one machine of JILONG optical fiber measurement will be officially launched in 2020, which is another new product after the red pen.

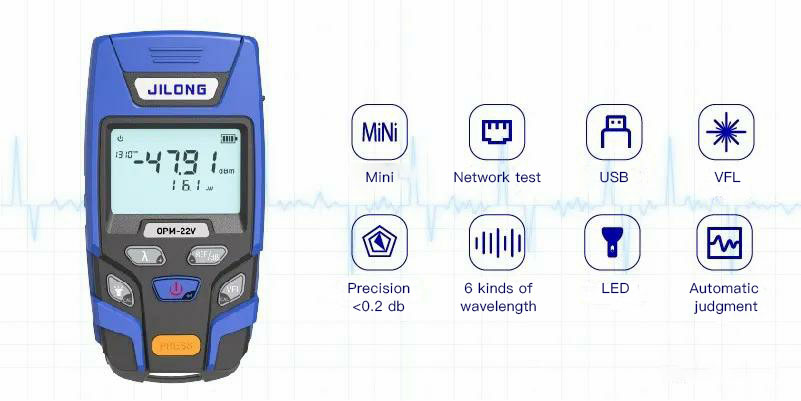

※MINI pocket design, compact appearance,

※Easy to operate with one hand and easy to carry

※Its measurement accuracy is high, only less than 0.2dB

※It has 6 wavelengths (850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm)

※Suitable for SC, ST, FC connector interface

※Its threshold setting and automatic judgment function, after you set the threshold value, ※when the measurement result is lower than the set value, the screen will display a red warning.

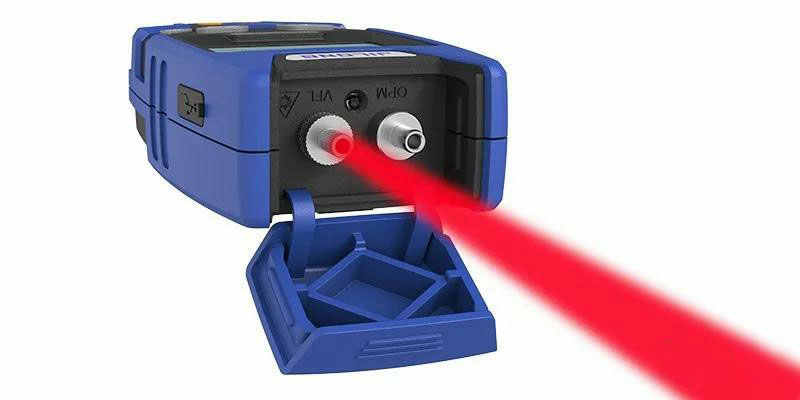

In order to effectively improve the friendliness and usability of the product, opM-22V all-in-one machine not only has optical fiber power test interface, but also has VFL red interface, and its red-light source is strong and stable. In the product function, it may be said is "one machine multi-purpose", the product cost performance ultra-high.

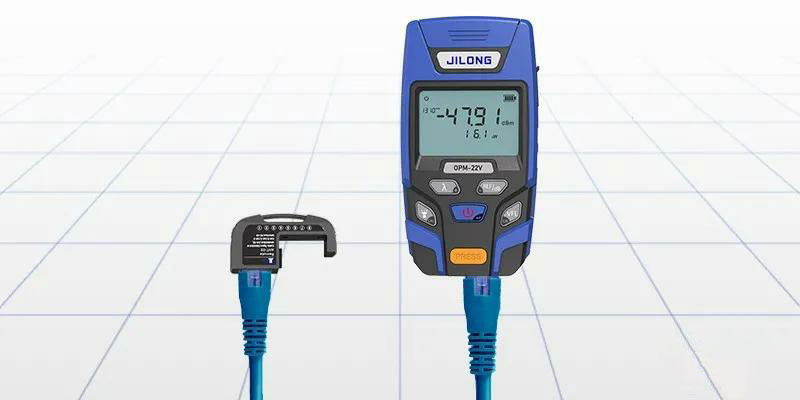

Opm-22v is designed with a network test module. By pressing the button "PRESS", the network sequence can be measured and the signal transmission can be judged.

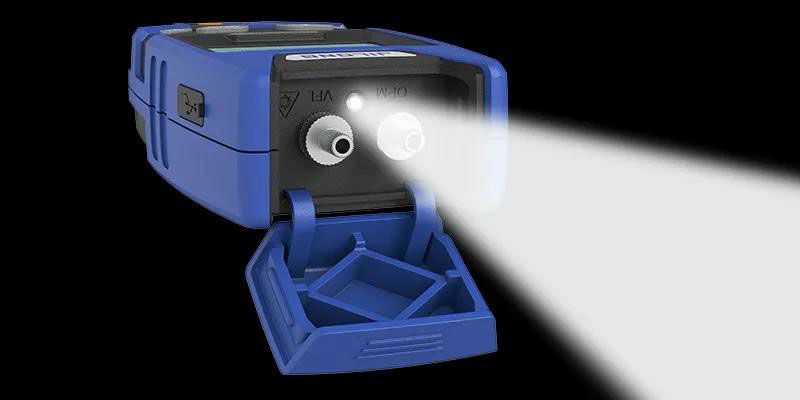

Equipped with LED flashlight, it is more convenient for you to check the line under dim light condition. Go out to detect often a whole day, does the machine often have no power?Opm-22v optional lithium battery, it is also designed with USB charging interface, can support the current mainstream charging devices in the market, such as charging, COMPUTER USB, car USB, etc., out of the test no longer need to worry about the optical power meter "off" power.

Compared with OPM-22V, opM-22 optical power meter only has no VFL red function, and other functions are basically the same. Users of the two models can choose according to their needs.
