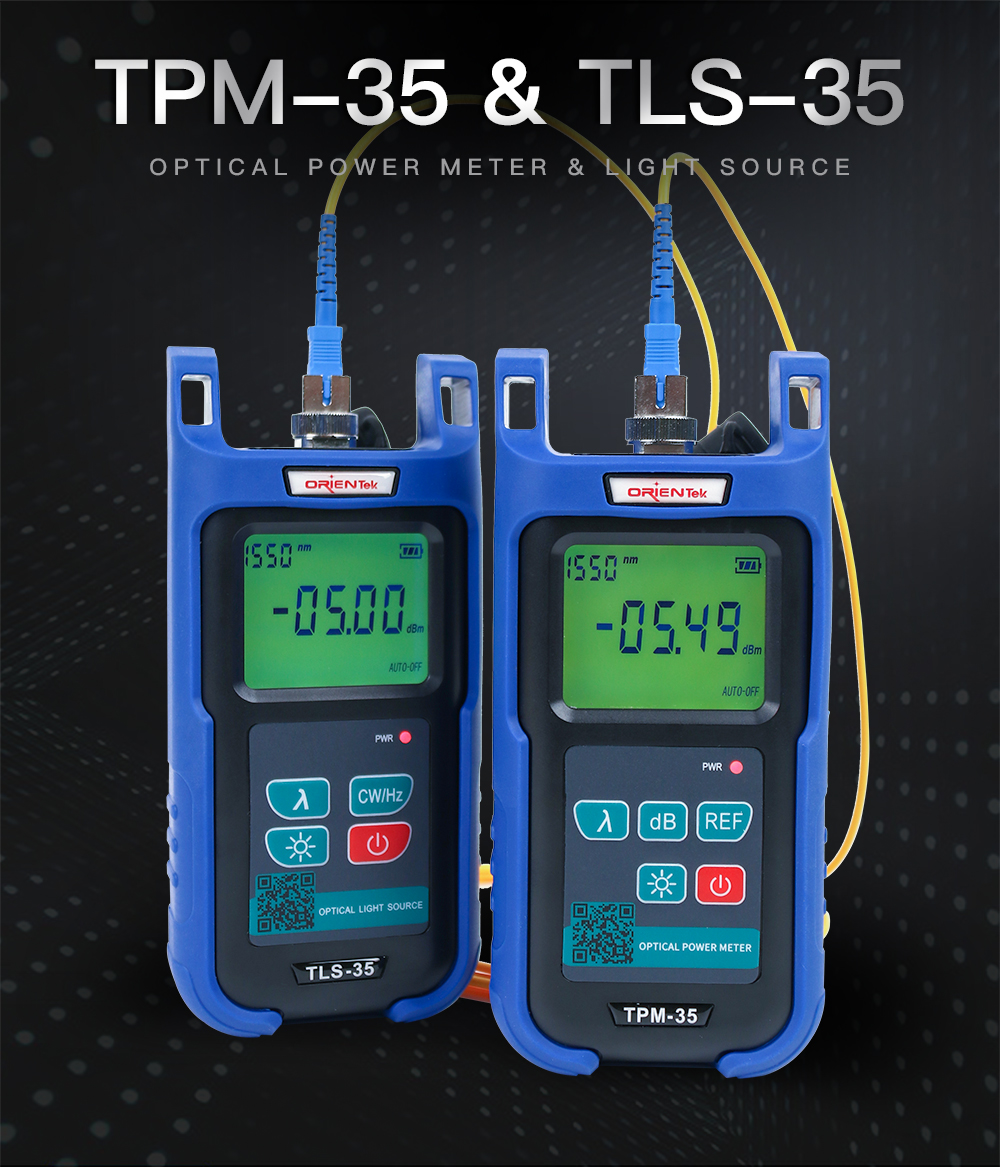

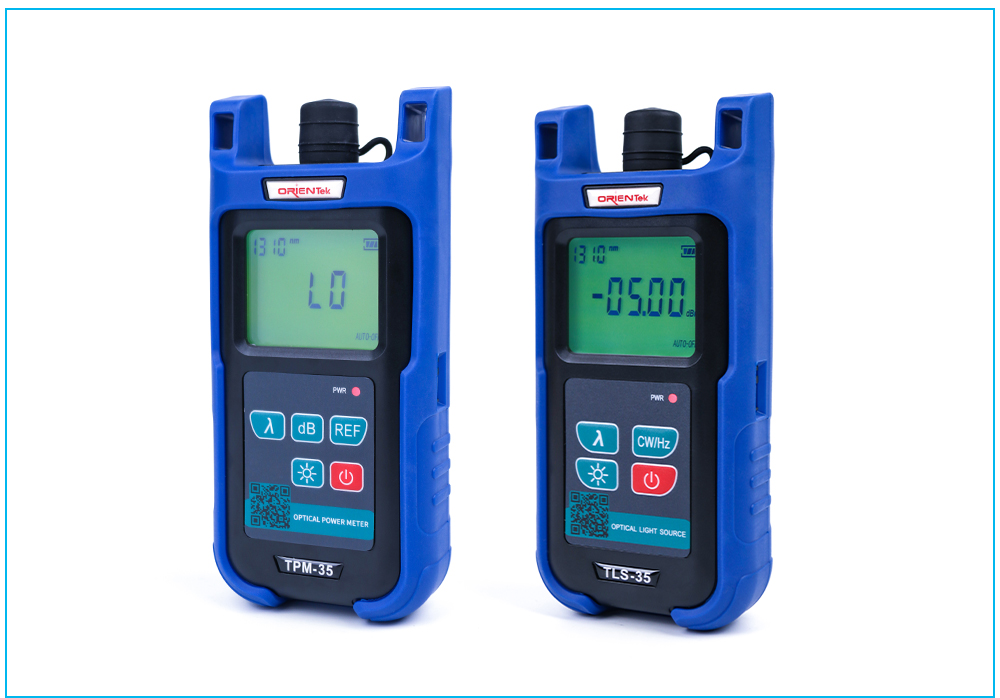

Orientek TPM-35 Fiber Optic Power Meter 850/1300/1310/1490/1550nm Optical Power Meter OPM VFL OTDR Tester & TLS-35 Optical Light Source OLS
- Buy 10 for $28.90 each and save 4%
● 2.5mm universal(FC+SC+ST Connector)
● Wavelength(nm): SM 1310/1550nm,MM 850/1300nm,1310/1490/1550nm, SM &MM 850/1300/1310/1550nmfor Light Source, 850/980/1300/1310/1490/1550/1625(nm) for power meter
● Measurement Range: -50~+26dBm/-70~+10dBm for power meter

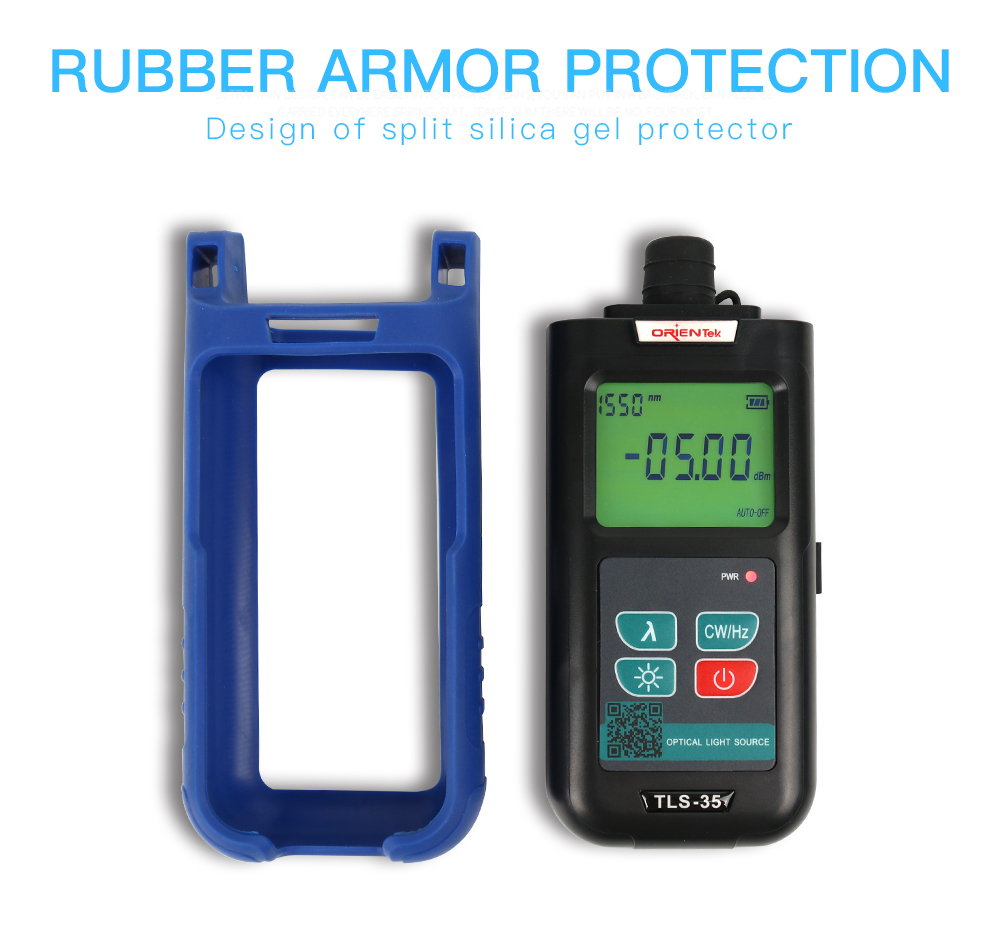

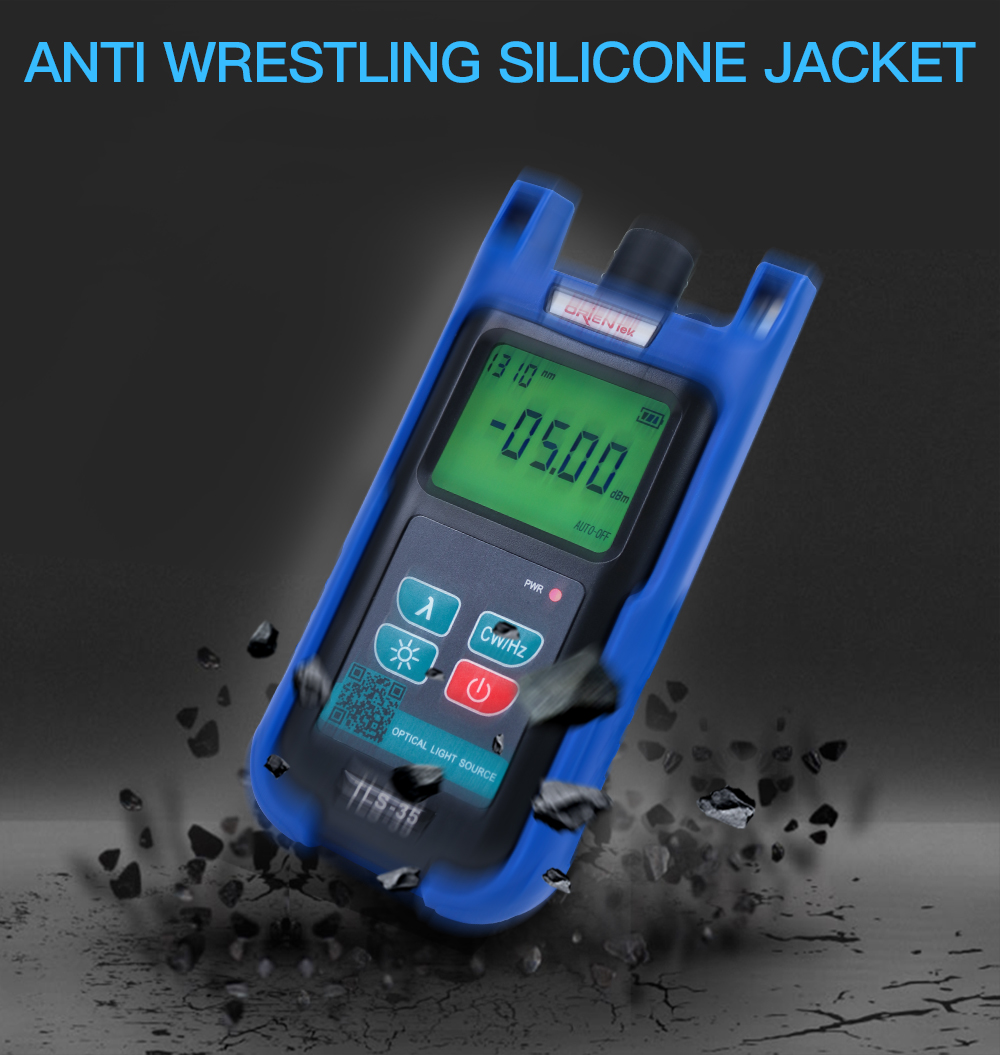

● Rubber armor protecion; Anti-proof; Power meter and Light Source Combine
● It offers power autonomy of 55 hours, for reliable, long-lasting performance in the field
● Get in touch with us within 15 days after signing for the package to free return or exchange the goods if any quality issues happen.

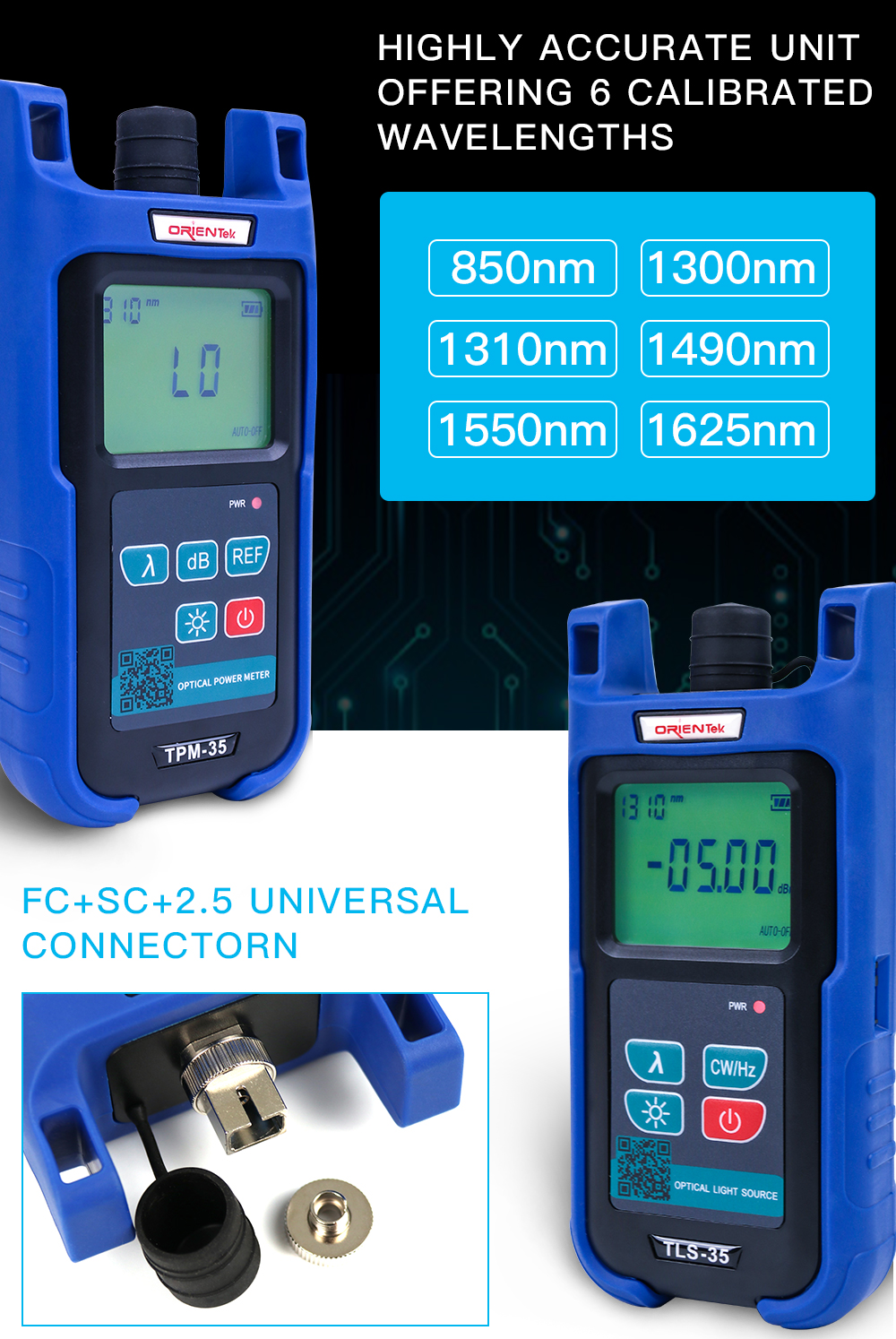

7 calibrated wavelengths optic fiber power meter Orientek TPM-35 High Precision FTTH fiber cable test tool FC+SC Connector

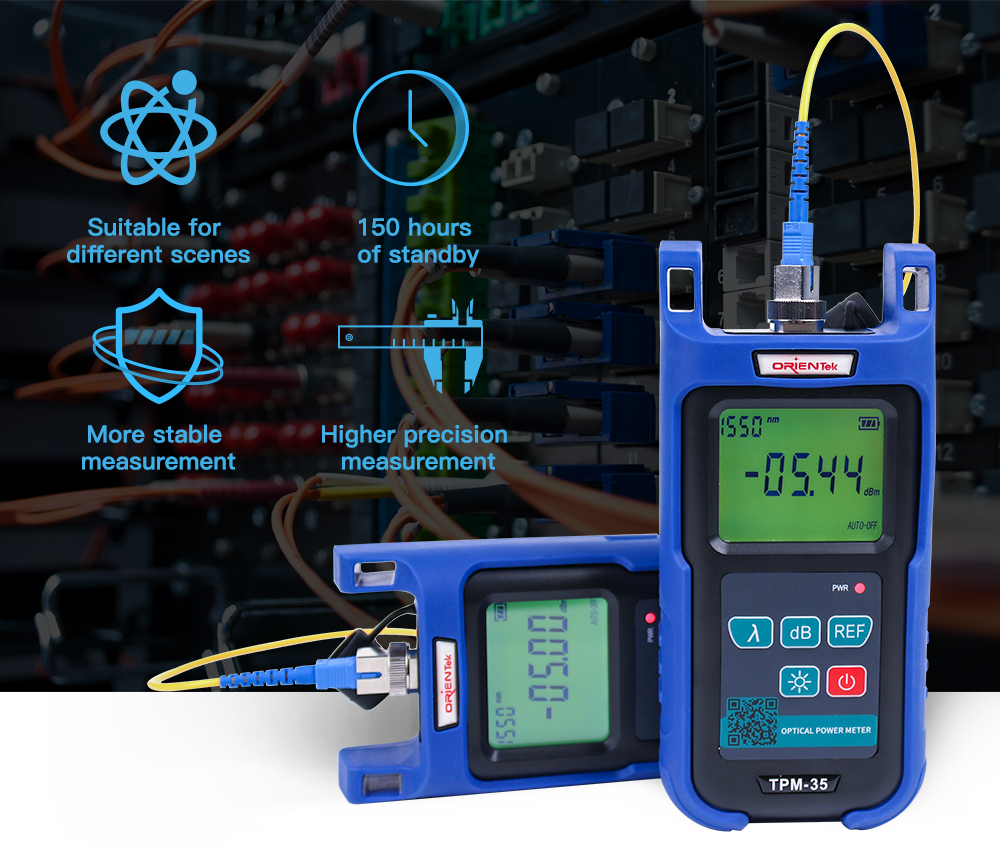

The TPM-35 Power Meter provides highly accurate power measurements, as well as reference value setting capabilities. What’s more, this convenient unit requires no offset nulling, and it offers power autonomy of 55 hours, for reliable, long-lasting performance in the field.

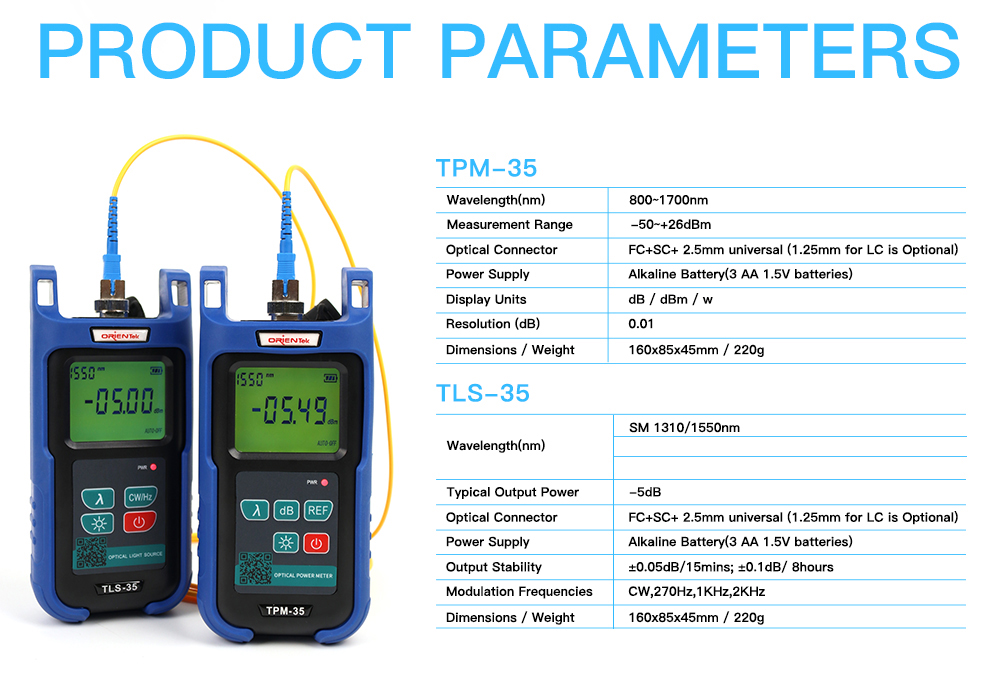

Specifications:
① Wavelength: 850/980/1300/1310/1490/1550/1625(nm)
② Measurement Range: -50 ~ +26dBm(TPM-35-C-G)/-70~+10dBm(TPM-35-A-G)
③ Connector : FC + SC + ST + 2.5mm universal (1.25mm for LC is Optional)
④ Detector: InGaAs
⑤ Resolution: 0.01 dBm
⑥ Display Unit: dB / dBm / w
⑦ Power Supply : Alkaline Battery(3 AA 1.5V)
⑧ Dimensions/Weight:160x85x45mm / 220g
Standard Accessories:
User guide: 1PC
Certificate of Qualified: 1PC
FC Connectors: 1PC
SC Connectors: 1PC
Guarantee card: 1PC
Soft carry bag: 1PC
Optic fiber tester light source FTTx hand-held type fiber cable test tools with SC+FC connector

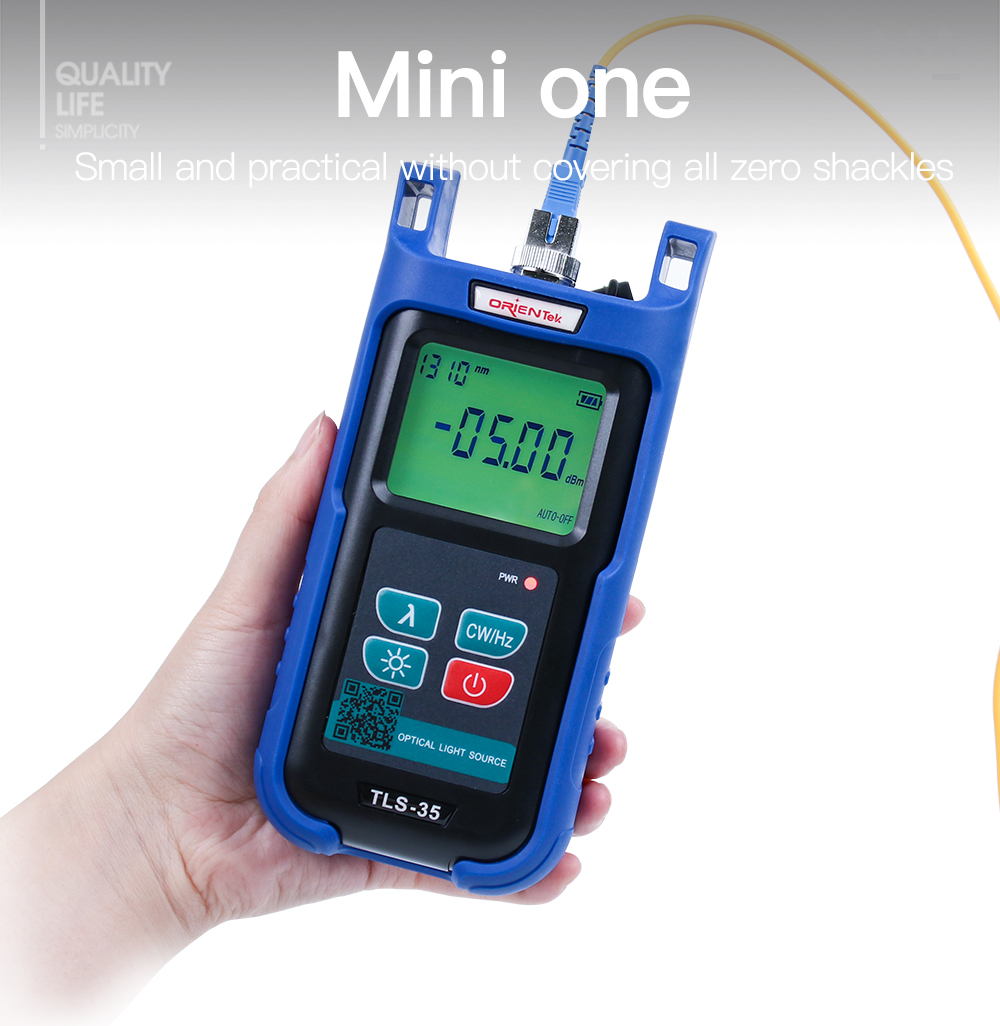

The Orientek TLS-35 Light Source provides excellent stability and high measurement accuracy for up to two single mode wavelengths. It is the perfect complement to the TPM-35 Power Meter when it comes to measuring attenuation on fiber-optic links
Specifications
① Wavelength(nm):OLS SM 1310/1550nm SKU: TLS-35-S;OLS MM 850/1300nm SKU: TLS-35-M;OLS 1310/1490/1550nm SKU: TLS-35-P;OLS SM &MM 850/1300/1310/1550nm SKU: TLS-35-MS
② Typical Output Power: -5dBm
③ Output Stability: ±0.05dB/15mins; ±0.1dB/ 8hours
④ Modulation Frequencies: CW, 270Hz, 1KHz, 2KHz

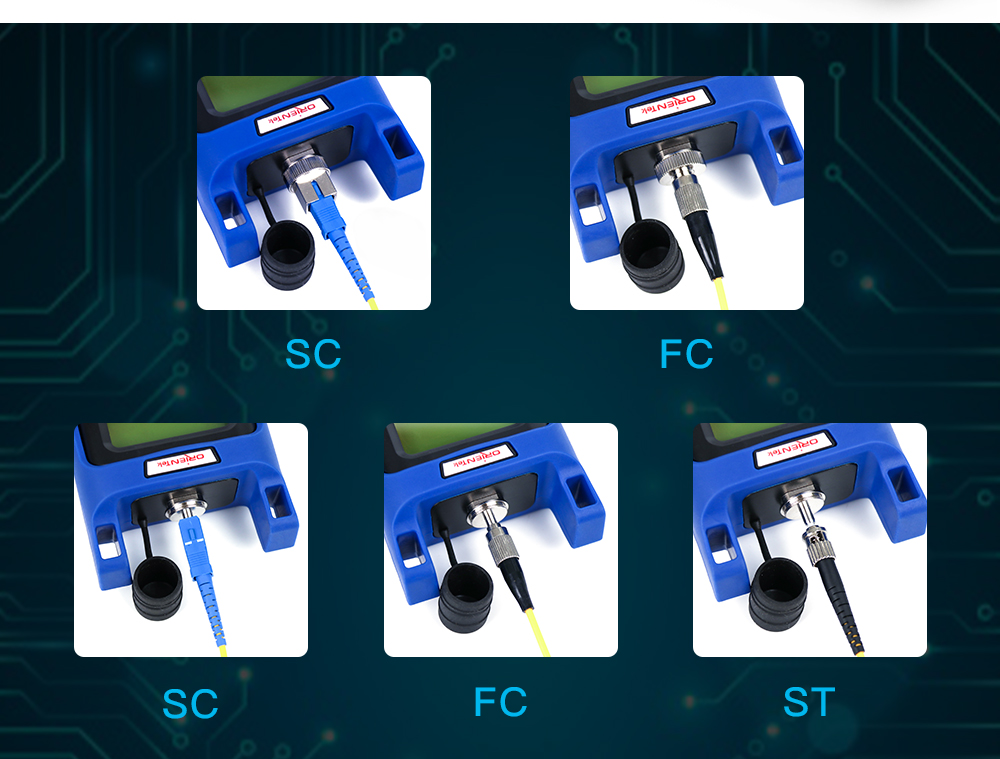

⑤ Connector: FC + SC + ST + 2.5mm universal (1.25mm for LC is Optional)
⑥ Power Supply: Alkaline Battery(3 AA 1.5V package not included the batteries )
⑦ Dimensions / Weight:160x85x45mm / 220g

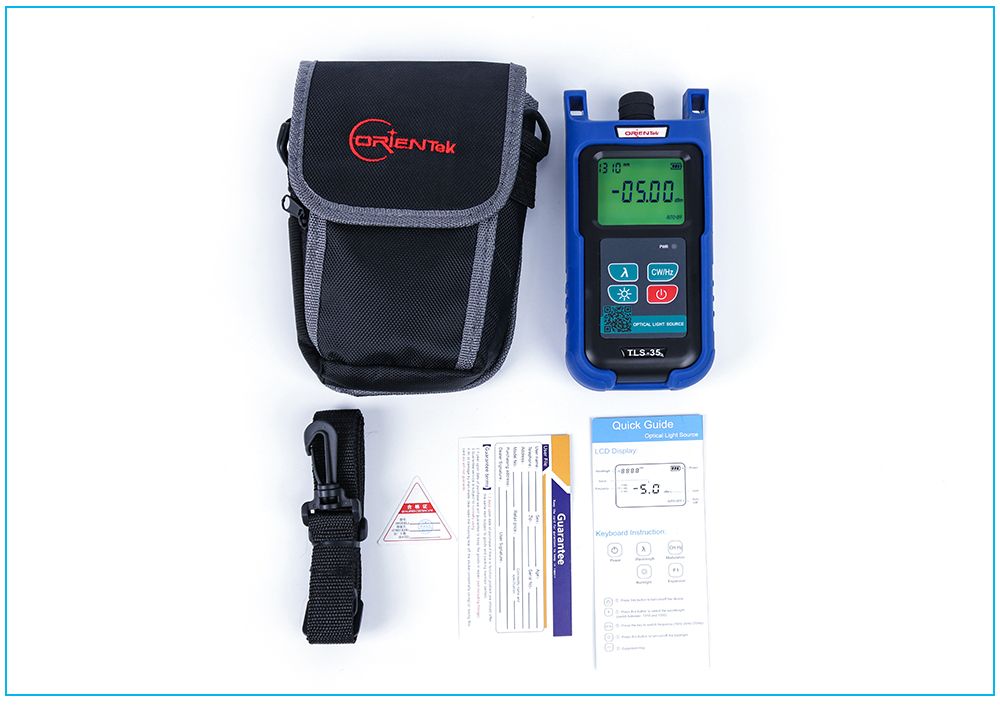

Standard Accessories:
User guide: 1PC
Certificate of Qualified: 1PC
FC Connectors—: 1PC
SC Connectors: 1PC
Guarantee card: 1PC
Soft carry bag: 1PC
Warranty:
● Warranty Period: 1 year.
● In Warranty:
1. if the machine comes with any small problem: please contact us asap.
We will give you online supports: Phone Call, Email and Video Tutorial. and send you the replacement parts by express.
2. If the machine comes with big problem: we will ask you to send it back to us for repaired,And then send back to you. We will send a new machine to you if we can not fix the broken machine.
● Out of Warranty:
If the buyer need the parts, the seller promise offer it only at the basic cost.
