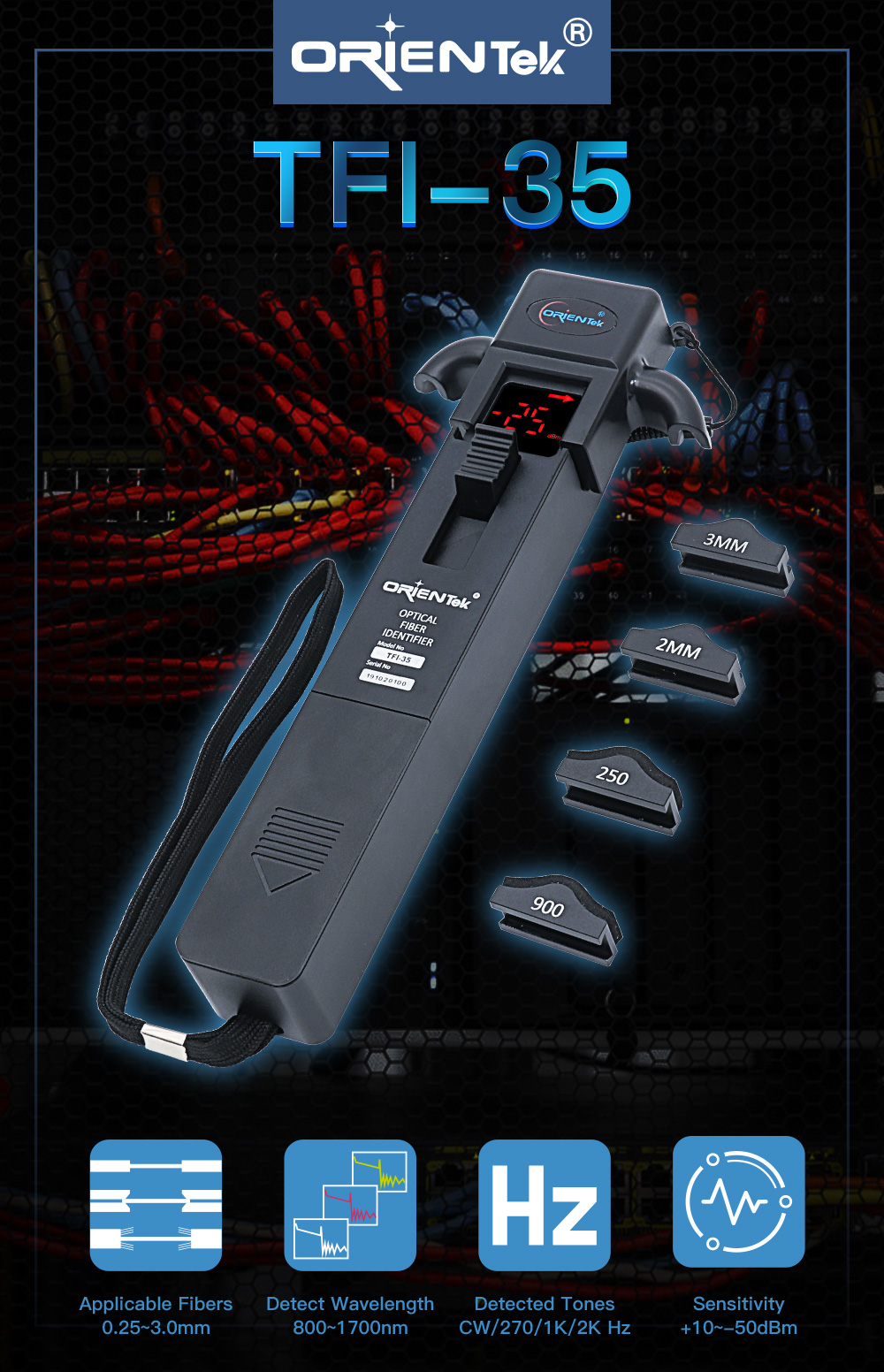

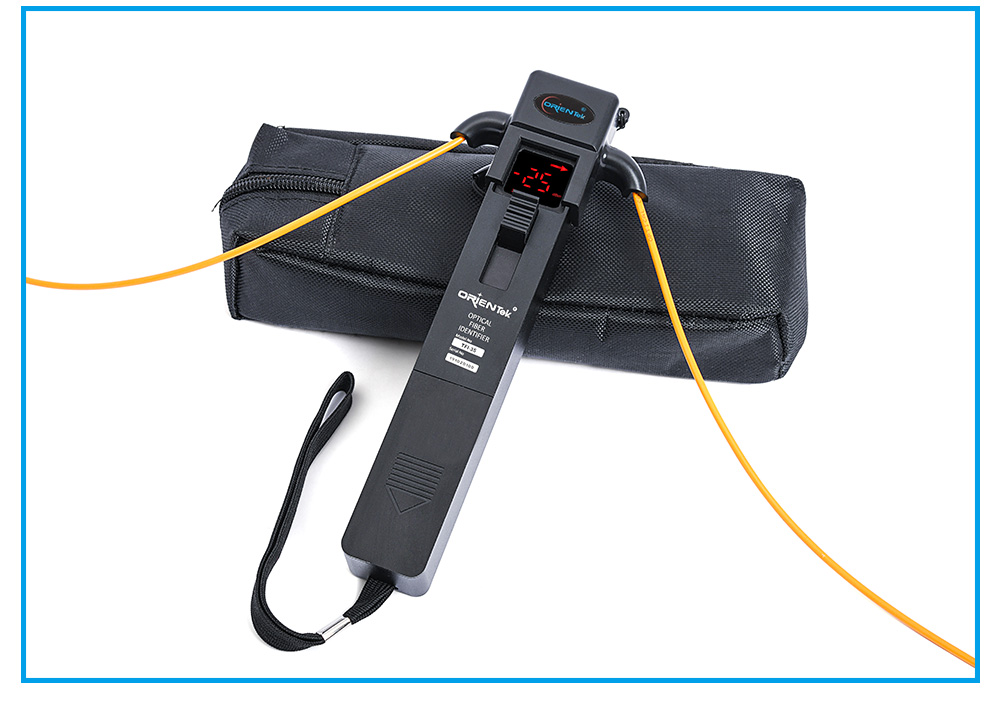

Orientek TFI-35 Optical Fiber Identifier 800-1700nm Live Fiber Identifier Detector SingleMode

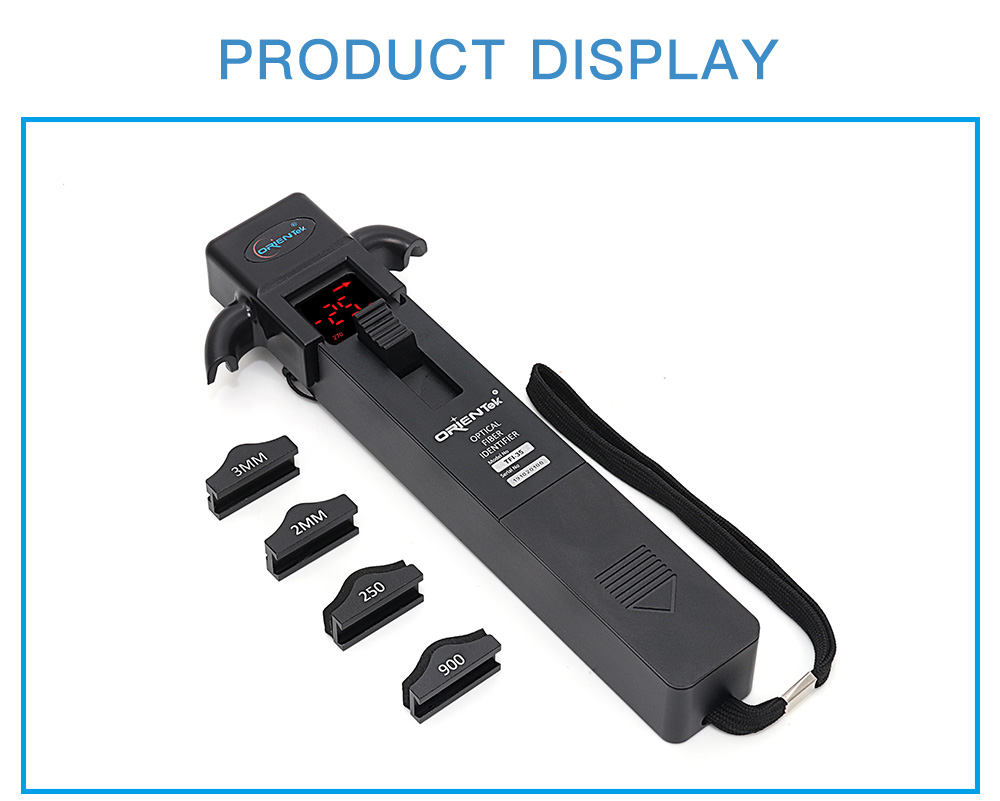

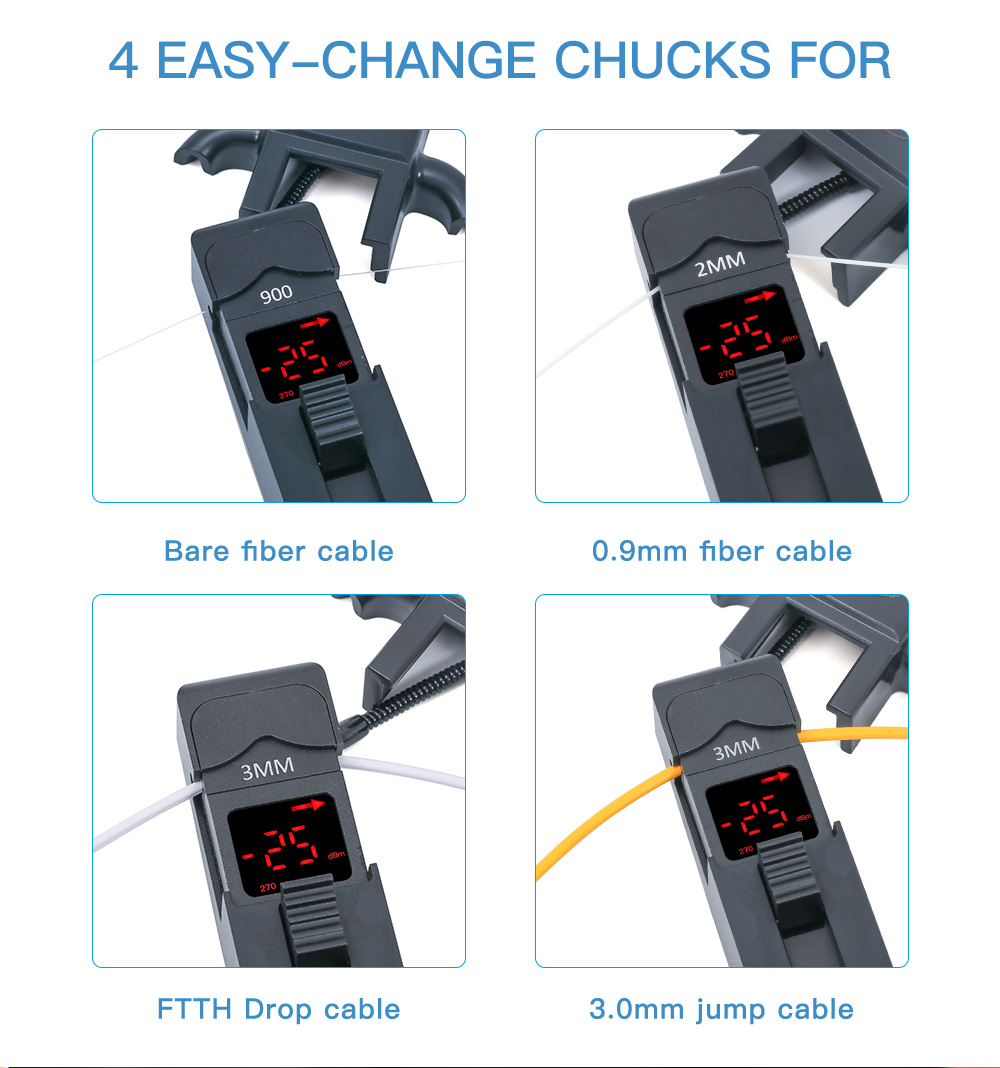

● 4 easy-change chucks : Bare Fiber Cable, 0.9mm Fiber Cable, FTTH Drop Cable & 3mm Jump Cable.
● Efficiently identifies the traffic direction and frequency tonel (270Hz, 1KHz, 2KHz) with audible warning.
● Displays the relative core power; Low false detection & insertion loss.
● More accurate test with Sunshade.
● Identifies dominant traffic direction, audible alarm.

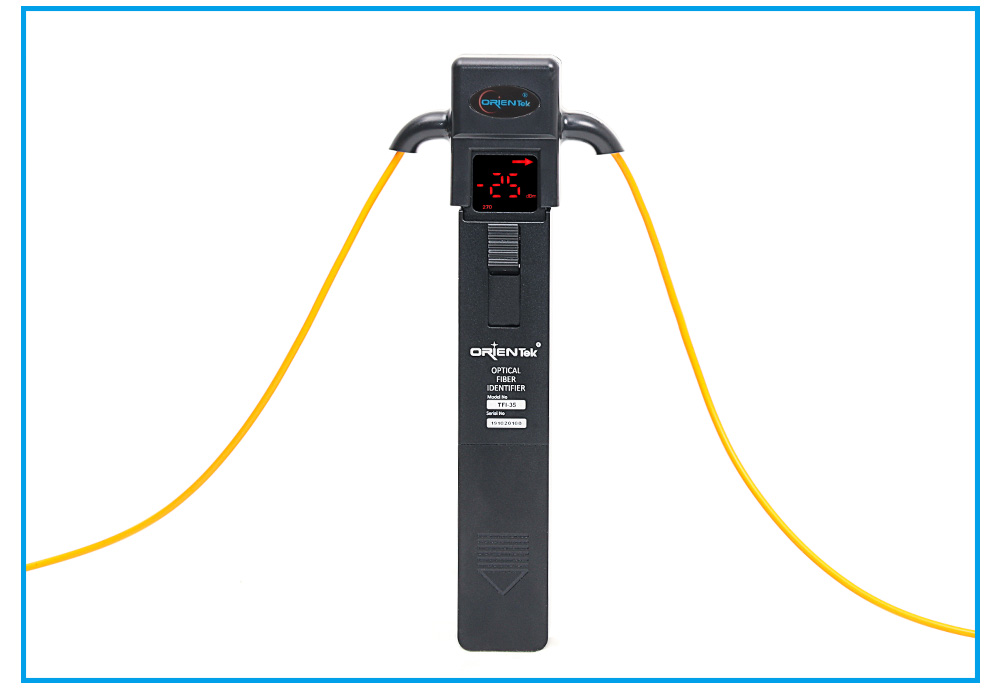

The TFI-35 Live Fiber Identifier allows you to detect traffic and measure signals anywhere on singlemode fibers without having to disconnect them.
It also lets you check for signal presence before rerouting or maintenance, perform continuity tests and verify cable labeling.
Based on non-destructive macrobending technology, the TFI-35 doesn't disrupt traffic, damage or overstress the fiber, enabling efficient, accurate and reliable data acquisition.
Features:

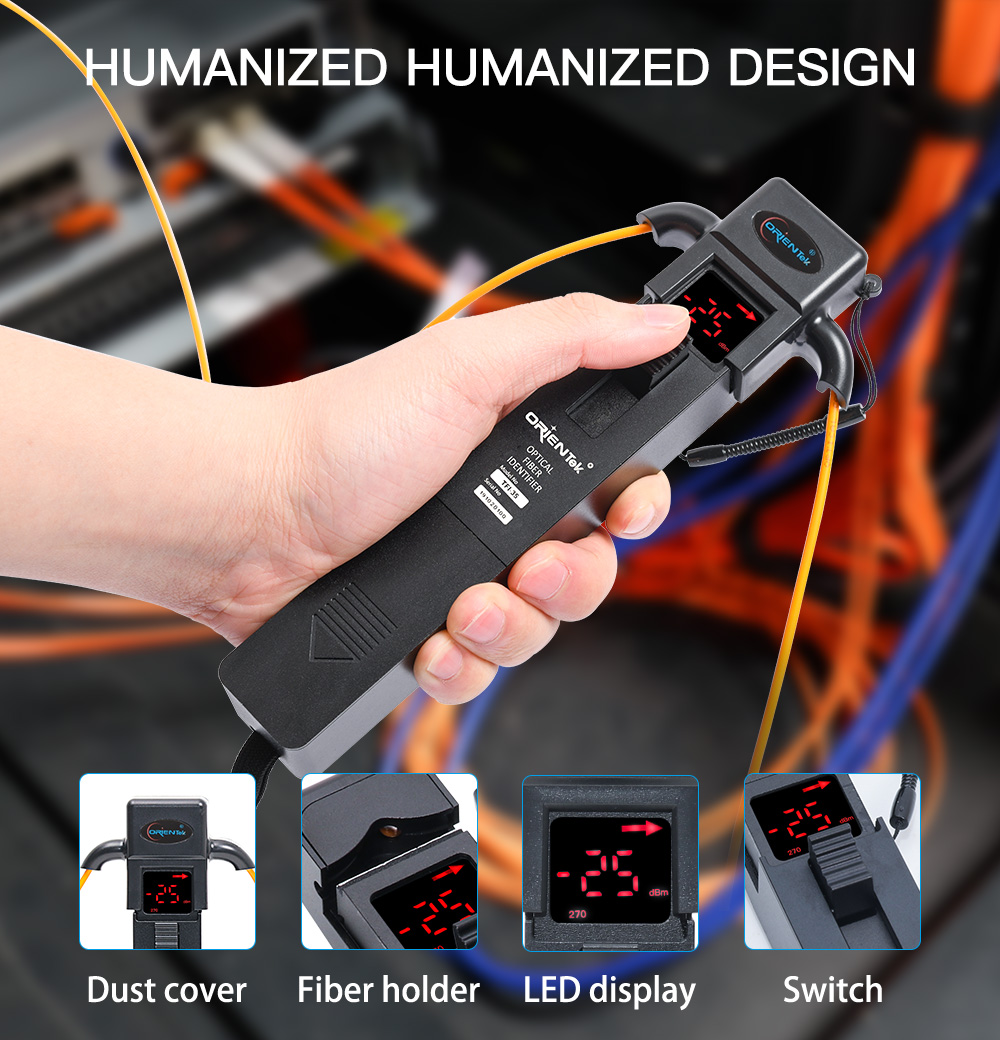

-- Easy-to-use with “ONE KEY” operation.
-- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
-- Displays the relative core power
-- More accurate test with Sunshade

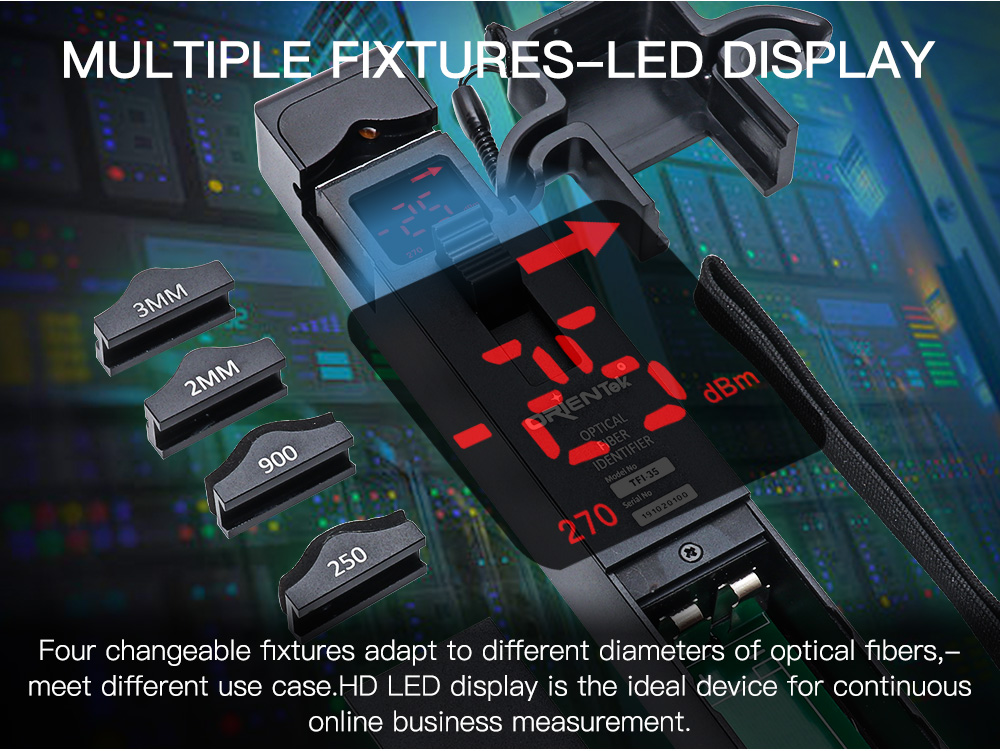

-- Easy-to-replace adaptors

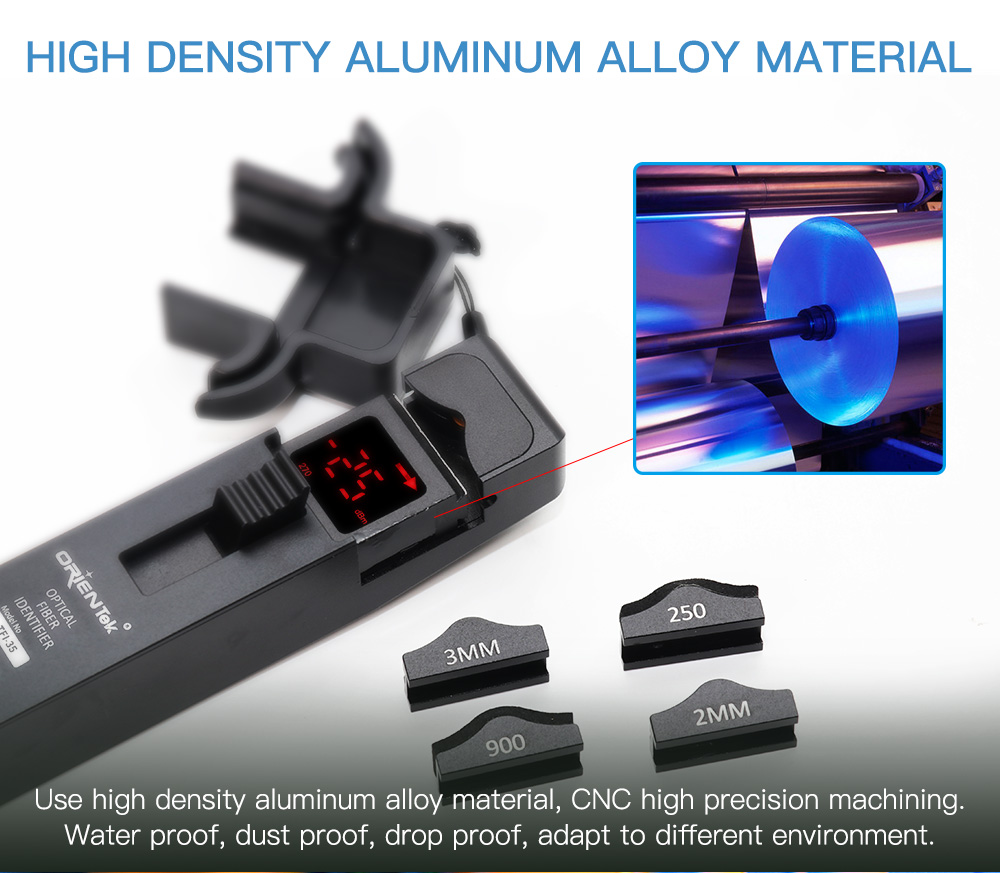

-- Durable metal housing and quality construction
-- Lower power indication

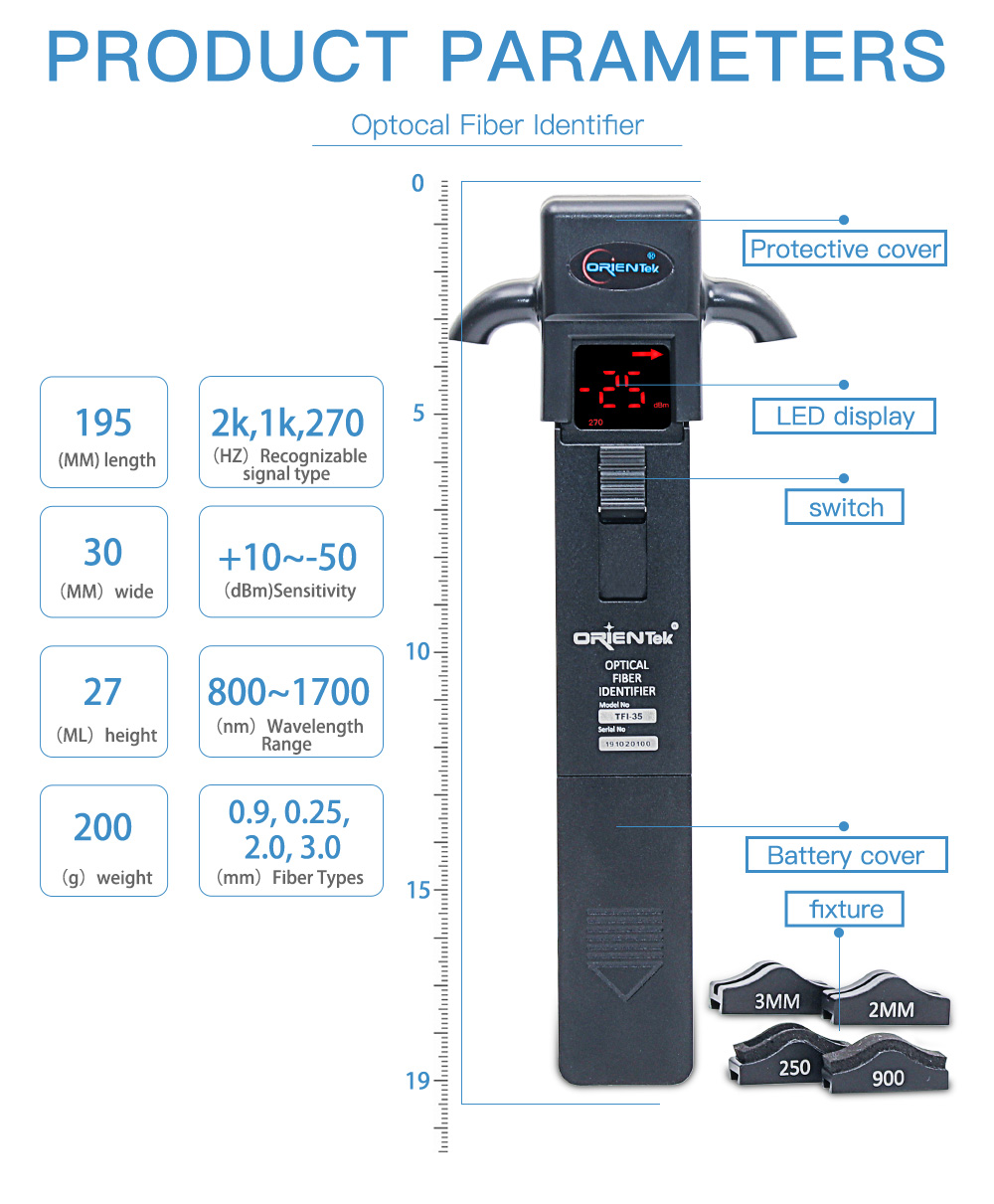

Specification:
|
Brand Name |
Orientek |
|
Model Number |
TFI-35 |
|
Type |
Cable or Pipe Locator |
|
Wavelength Range |
800-1700nm |
|
Detector Type |
InGaAs 2pcs |
|
Sensitivity |
+10~-50dBm |
|
Recoginazable signal type |
2kHz, 1kHz, 270Hz |
|
Fiber Types |
0.9, 0.25, 2.0, 3.0 mm |
|
Accuracy |
+10dB to -30 dBm /+10dB to -25 dBm (Modulated Signal) |
Warranty:
Warranty Period: 1 year.
● In Warranty:
1. if the machine comes with any small problem: please contact us asap.
We will give you online supports: Phone Call, Email and Video Tutorial. and send you the replacement parts by express.
2. If the machine comes with big problem: We will ask you to send it back to us for repaired,And then send back to you. We will send a new machine to you if we can not fix the broken machine.
● Out of Warranty:
If the buyer need the parts, the seller promise offer it only at the basic cost.
