OrienTek TPM-25M Fiber Optic Power Meter Optical Light Source 800~1700nm Optical Power Meter OPM OLS OTDR Tester
- Buy 4 for $27.00 each and save 7%
- OPM wavelength: 800~1700nm
- OPM Measurement range -70～+6dBm/-50~+26dbm
- OLS wavelength: SM1310/1550 MM 850/1300nm PON 1310/1490/1550nm

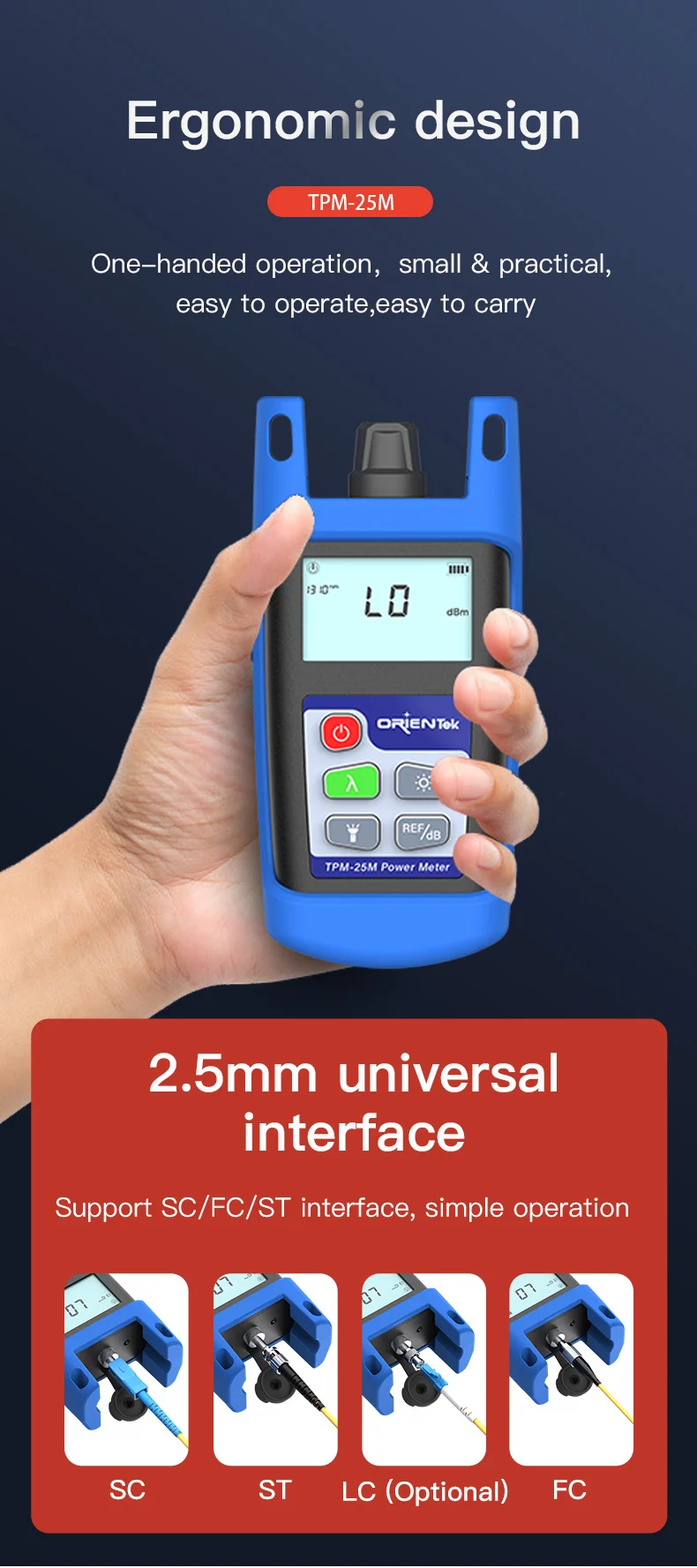

- Connector: OPM OLS 2.5mm universal

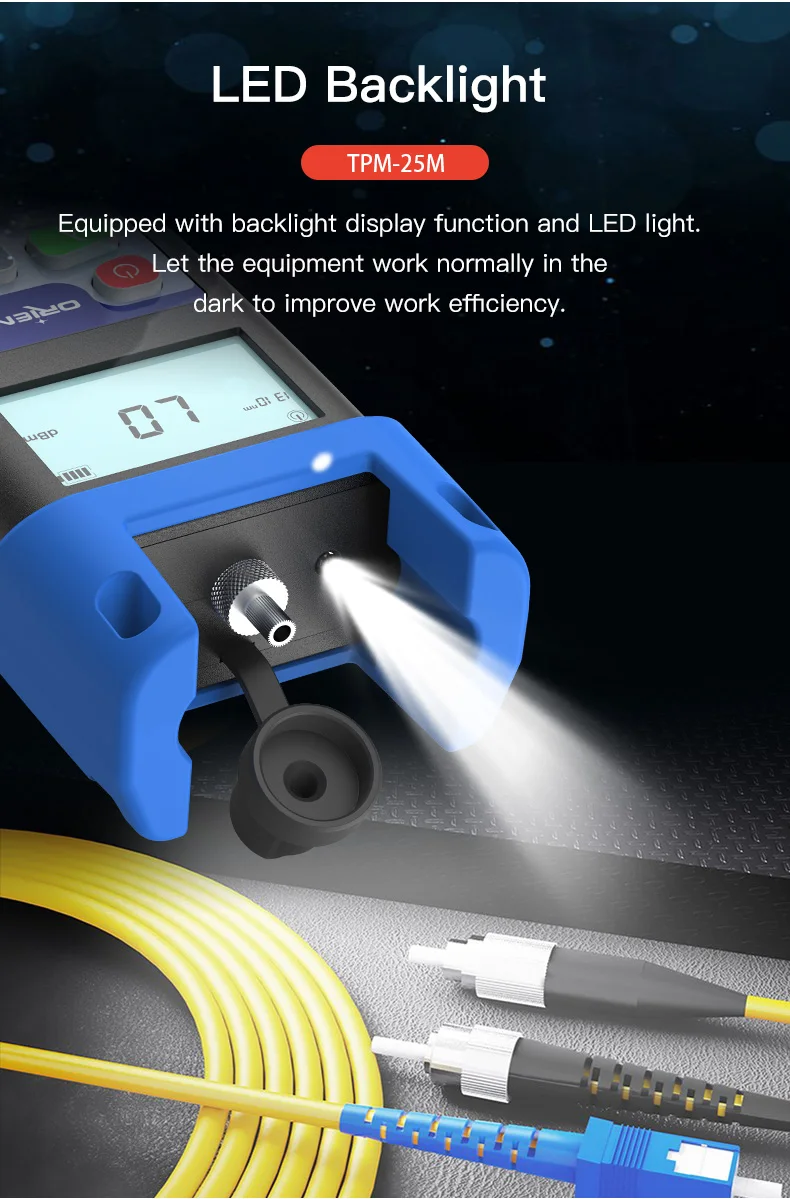

- LED lights, suitable for dark environment
- 100% quality assurance. Get in touch with us within 15 days after signing for the package to free return or exchange the goods if any quality issues happen.
ORIENTEK Optical Power Meter TPM-25 & Optical Light Source
QA:
1. Handing time & delivery time?
Usually we will send out within 24 hours, except the holiday and weekend. Delivery time:7-12 working days to worldwide
2. Why can not send out with batteries?
The produc's package sent out without batteries, becase the airline not allow put in battery.
3. Power Meter & VFL Rechangeable?
No, they are not rechargeable type.
4. Any discount or promotion?
Yes, More details please contact the official mail box sales@thefo.com / whatsapp& skype:+86 13625297051

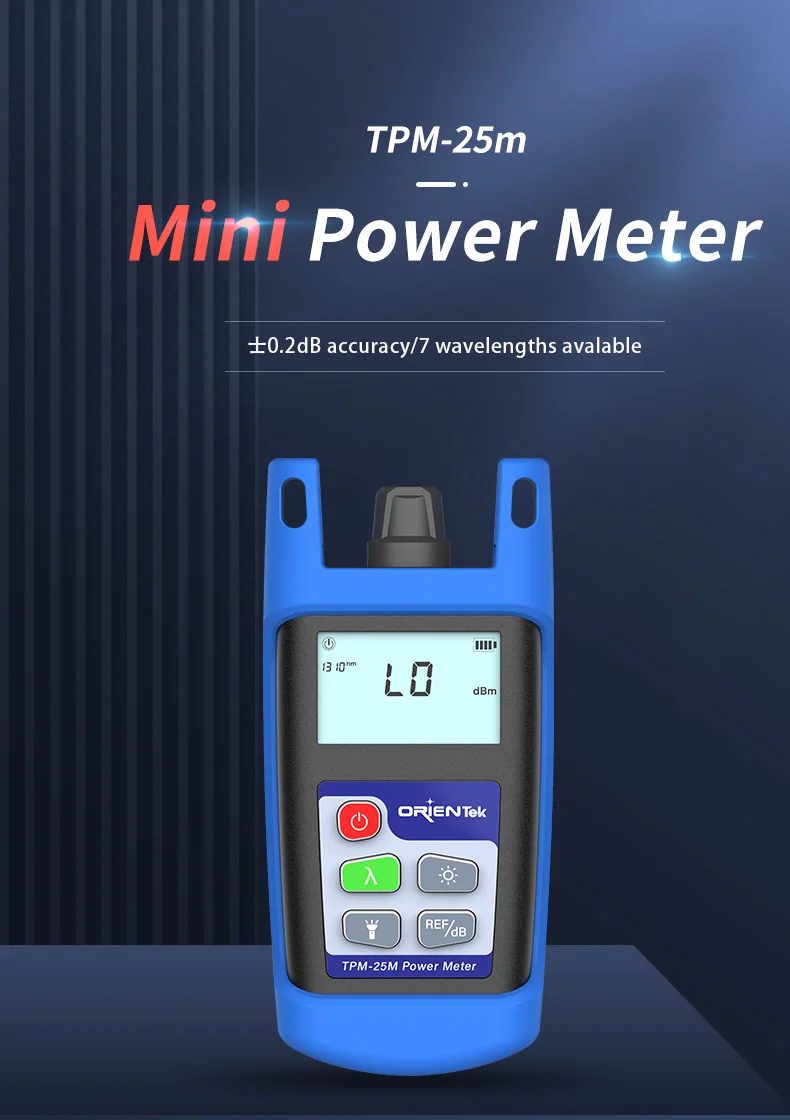

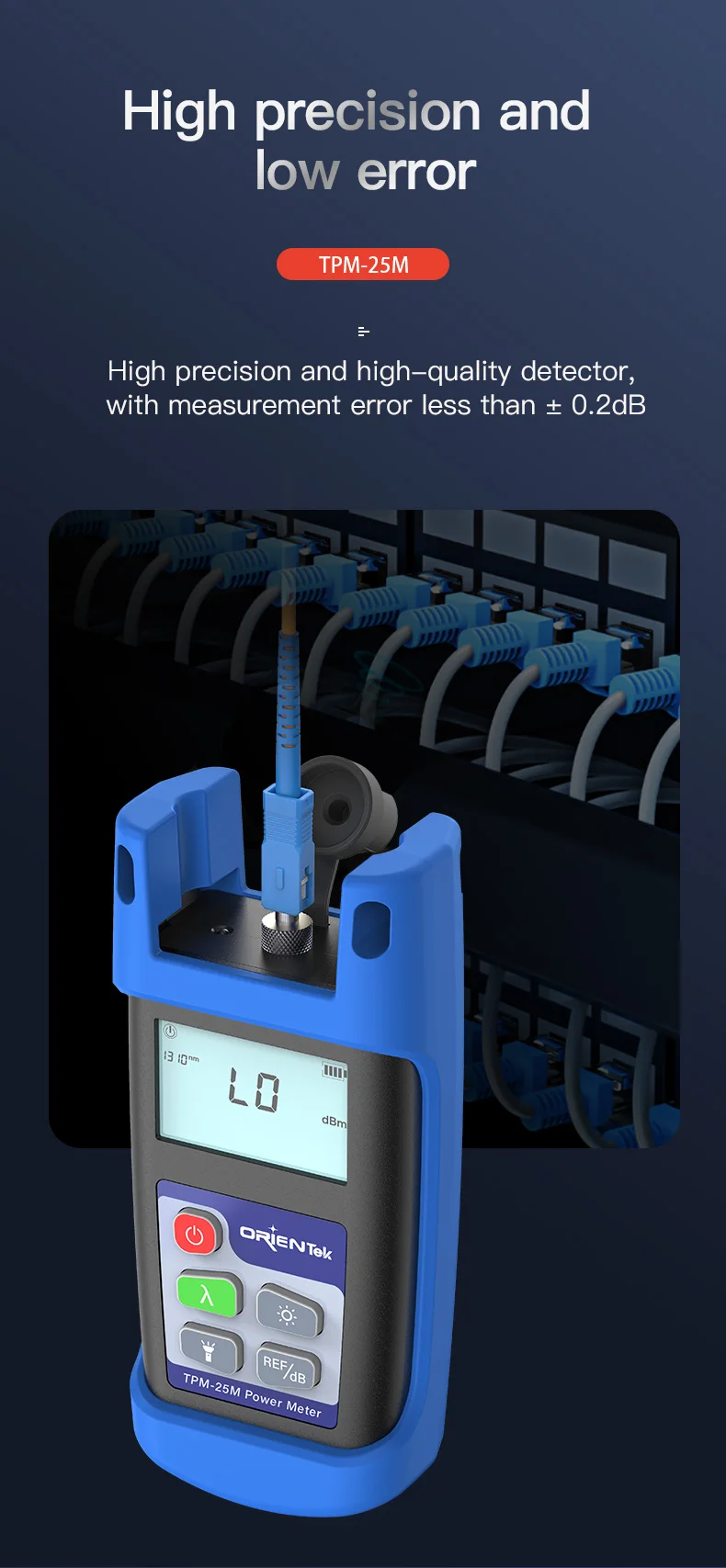

TPM-25M Specifications:
| Wavelengths(nm) | 800~1700(nm) |
| Measurement Range | -70~+6dBm/-50~+26dbm |
| Optical Connector | 2.5mm universal interface |
| Power Supply | Alkaline battery (3AA 1.5V battery Package not included the batteries) |
| Resolution | 0.01dB |
| Working Temperature | -10~+60(°C) |
| Storage Temperature | -25~+70(°C) |
| Dimensions/Weight | 137*60*37mm/180g |

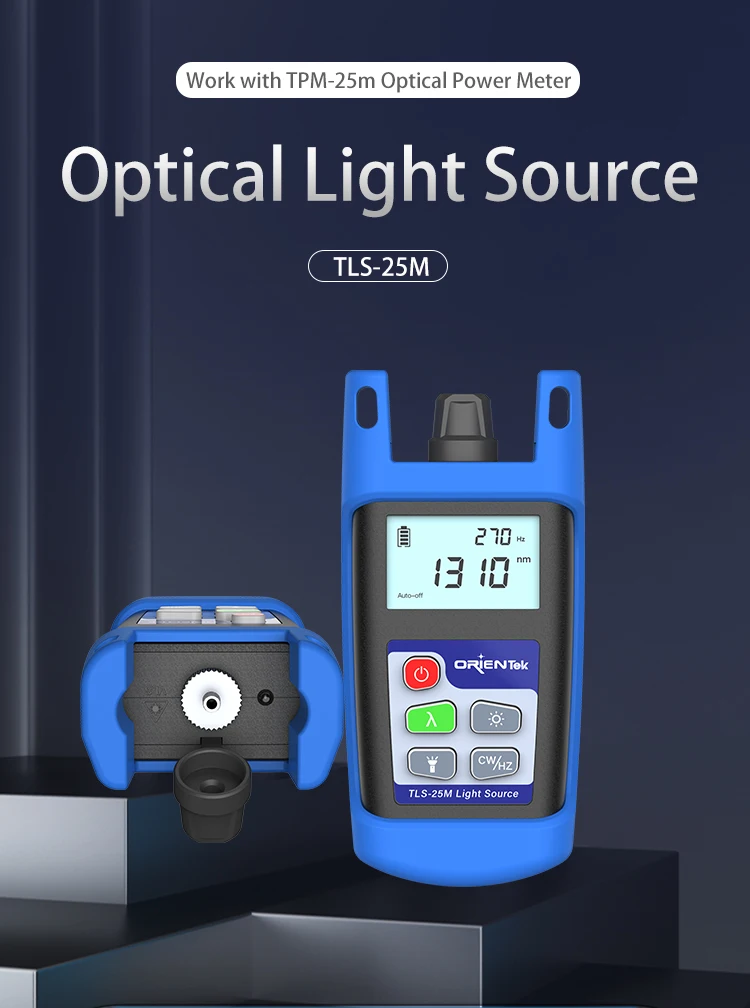

TLS-25M Specifications:
| Wavelength(nm) |
SM 1310/1550nm MM 850/1300nm PON 1310/1490/1550nm |
| Typical OutputPower | -5dB |
| Optical Connector | 2.5mm universal |
| Power Supply | AlkalineBattery(2 AAA 1.5V batteries Package not included the batteries) |
| Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours |
| Modulation Frequencies | CW, 270Hz, 1KHz, 2KHz |
| Dimensions / Weight | 130x65x35mm / 180g |
